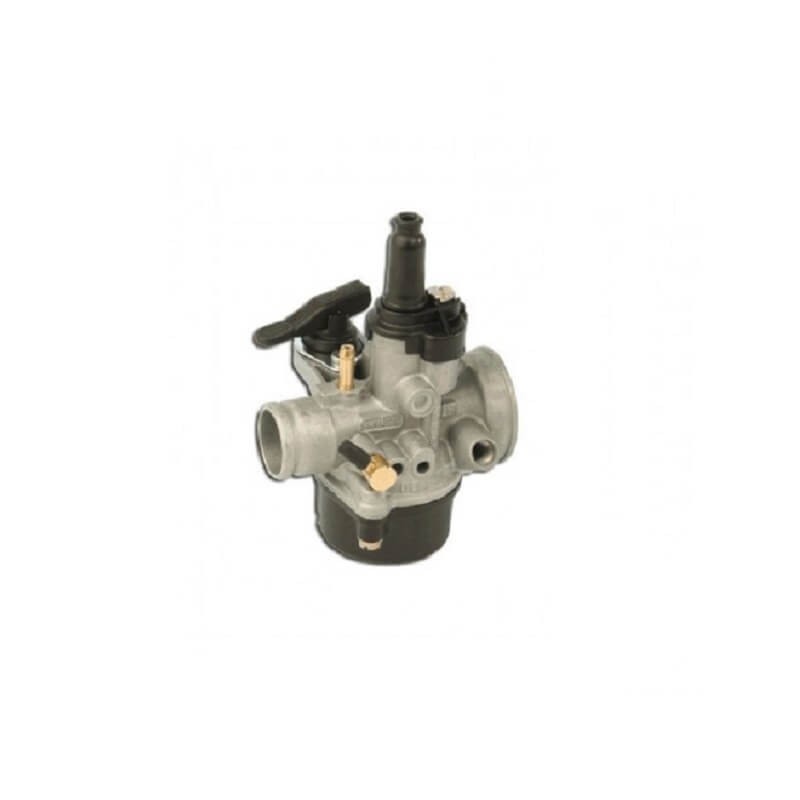

Carburetor Derbi / Am6 17.5 PHVA with lever Dellorto

The famous Italian brand Dellorto, specialized in the construction of carburetors, brings us the following carburetor, suitable for Derbi and Minarelli AM6 engines.
Carburetor for rubber sleeve with a 24mm connection and pull-starter on the same carburetor.
Equipped for automatic mixing.

Standard configuration:
Main jet: 83 (type Dellorto 6mm)
Idle jet: 34 (4mm)
Choke jet: 50
Needle: A 7
Float: 13700.1
Slide: 40

Suitable for:

APRILIA
RS 50 from 2006 onwards -> (DERBI D50B)
RS4 50 (DERBI D50B)
RX-SX 50 from 2006 onwards -> (DERBI D50B)

DERBI
GPR 50
GPR 50 Nude
GPR 50 RACING
SENDA 50 DRD R
SENDA 50 DRD SM
SENDA 50 EXTREME
SENDA 50 EXTREME SM
SENDA 50 R

GILERA
GSM 50, H@K, ZULU (2001)
RCR 50 - SMT 50

VALENTI RACING
RME, SM (DERBI D50B)

BULTACO
ASTRO 50
LOBITO 50

APRILIA
AF1 50 MINARELLI AM6
MX 50 Minarelli AM6
RS 50 MINARELLI AM6
RX 50 MINARELLI AM6
TUONO 50 Minarelli AM6

BETA
RR 50 AM6 (1999-2002)
RR 50 ENDURO, MOTARD 50 ALU AM6 2003
RR 50 SM AM6 (2002-2004)

CPI
SUPERCROSS 50
SUPERMOTO 50

FANTIC MOTOR
CABALLERO 05 Minarelli AM6

HM
CRE 50 Minarelli AM6
CRE 50 SIX 2003/2005 Minarelli AM6
CRE 50, DERAPAGE 2007/2012 (50X, 50R)
DERAPAGE 50 2001/02 Minarelli AM6
DERAPAGE 50 2003/05 Minarelli AM6

MALAGUTI
DRAKON 50
XSM 50 Minarelli AM6
XTM 50 Minarelli AM6

MBK
X-LIMIT 50 Minarelli AM6
X-POWER 50 Minarelli AM6

MINARELLI
AM3
AM4
AM5
AM6

PEUGEOT
XPS 50 SM MINARELLI AM6
XPS 50 T MINARELLI AM6
XR6 50 MINARELLI AM6

RIEJU
MRT, MRX MINARELLI AM6
SMX MINARELLI AM6
SPIKE MINARELLI 2006
TANGO Minarelli AM6

SHERCO
HRD ENDURO MINARELLI AM6
HRD SM MINARELLI AM6

YAMAHA
DT 50 R MINARELLI AM6
DT 50 SM MINARELLI AM6
TZR 50 MINARELLI AM6
